Electroplated Saw Blade For Marble Grinding and Cutting is using on hand-held grinder machine. Jingstar electroplated saw blades has high cutting speed and long life span.

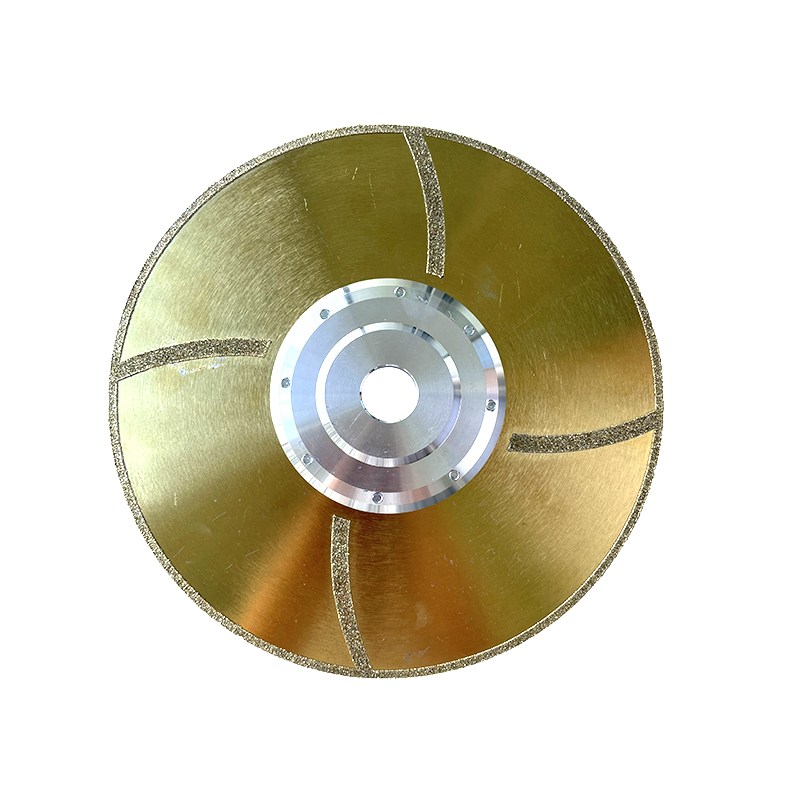

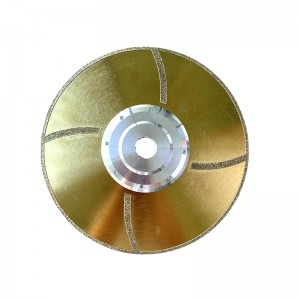

We have segmented design and continuous rim design of electroplated saw blades. Segments type of electroplated saw blades has better ability of removing the chips than the continuous type of blades,continuous rim saw blade has more smooth effect in grinding.

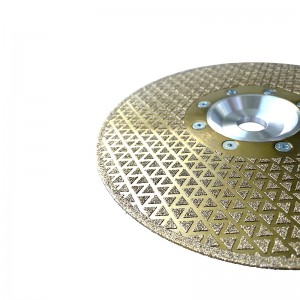

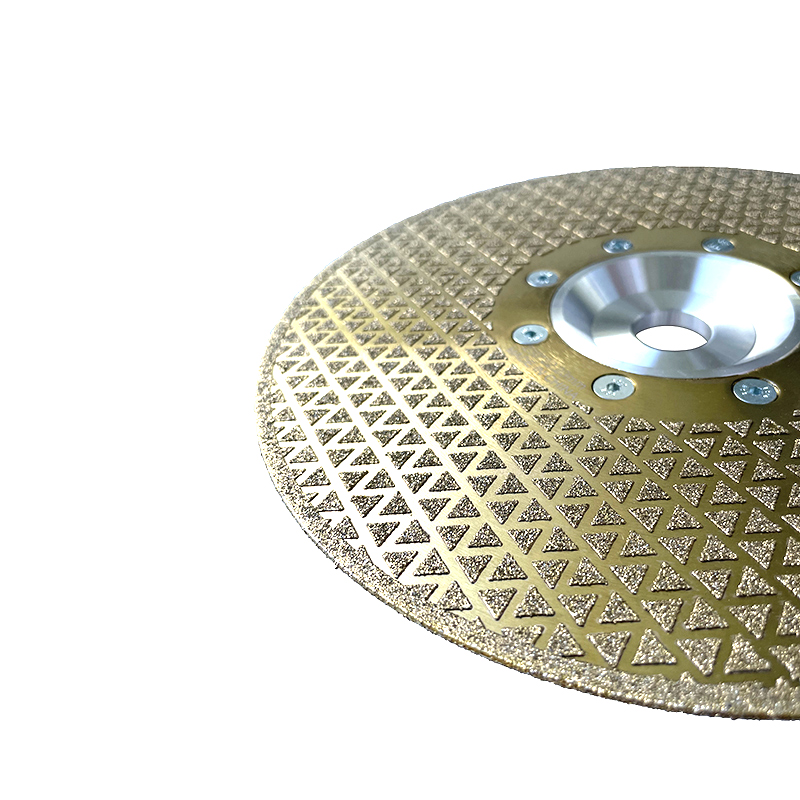

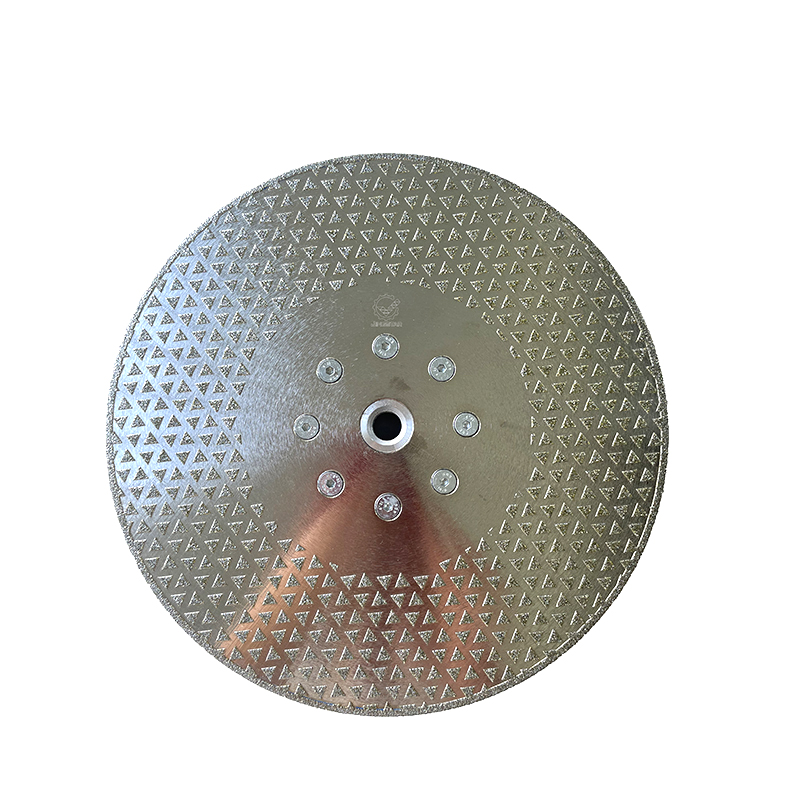

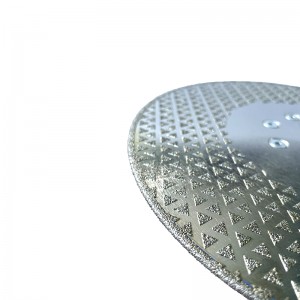

To make better grinding, electroplated saw blades designed in different ways, such as one face with all diamond, another face with 4 line diamond, or another face without line diamond
The electroplated saw blades diameter available: 4 inch, 5 inch, 7 inch, 9 inch etc.
Adaptor of electroplated saw blade: 22.23mm hole, M14 thread, 5/8-11 thread.
Electroplated saw blades are used on on hand-held grinder machine, it is easy for smooth grinding the areas where the big diameter of saw blades not able to reach.
They are widely used cutting for marble, limestone, travertine, any another soft stone material.
Please write to us we will provide you best cutting and grinding solution.
High speed cutting with long life span.
Stable cutting, smooth cut and flat surface.
Universal dry cutting and grinding
Diameter |
Segment Width |
Segment Height (mm) |
|
(mm) |
|||
inches |
mm |
||
4" |
105 |
1.8 |
7,8,10 |
4.5" |
115 |
1.8 |
7,8,10 |
5" |
127 |
2 |
7,8,10 |
6" |
152 |
2.2 |
7,8,10 |
7" |
178 |
2.2 |
7,8,10 |
8" |
203 |
2.4 |
7,8,10 |
9" |
229 |
2.8 |
7,8,10 |
Any other sizes as per requests. |
